| Option: |
OM-4050UVPrint+Dual Printhead

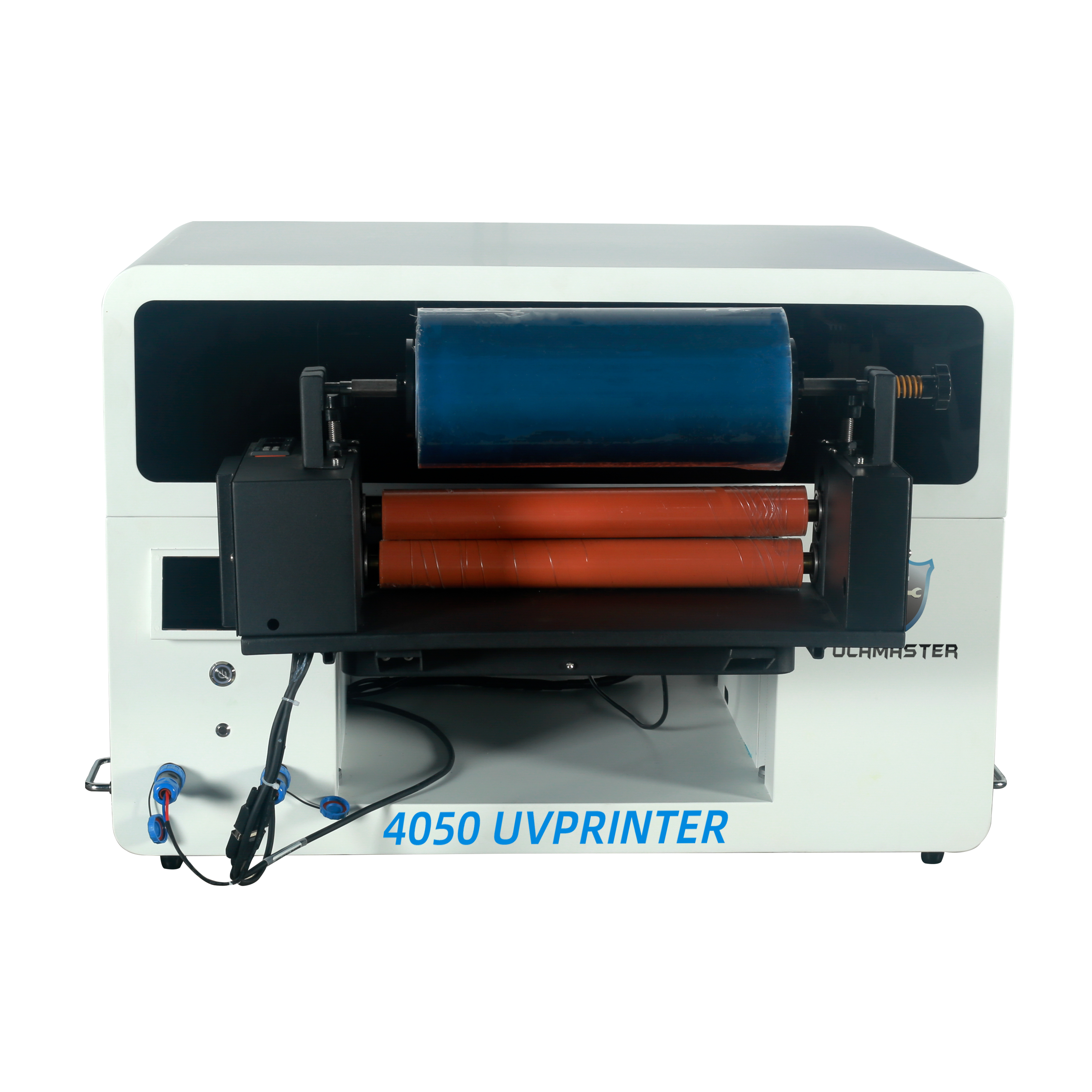

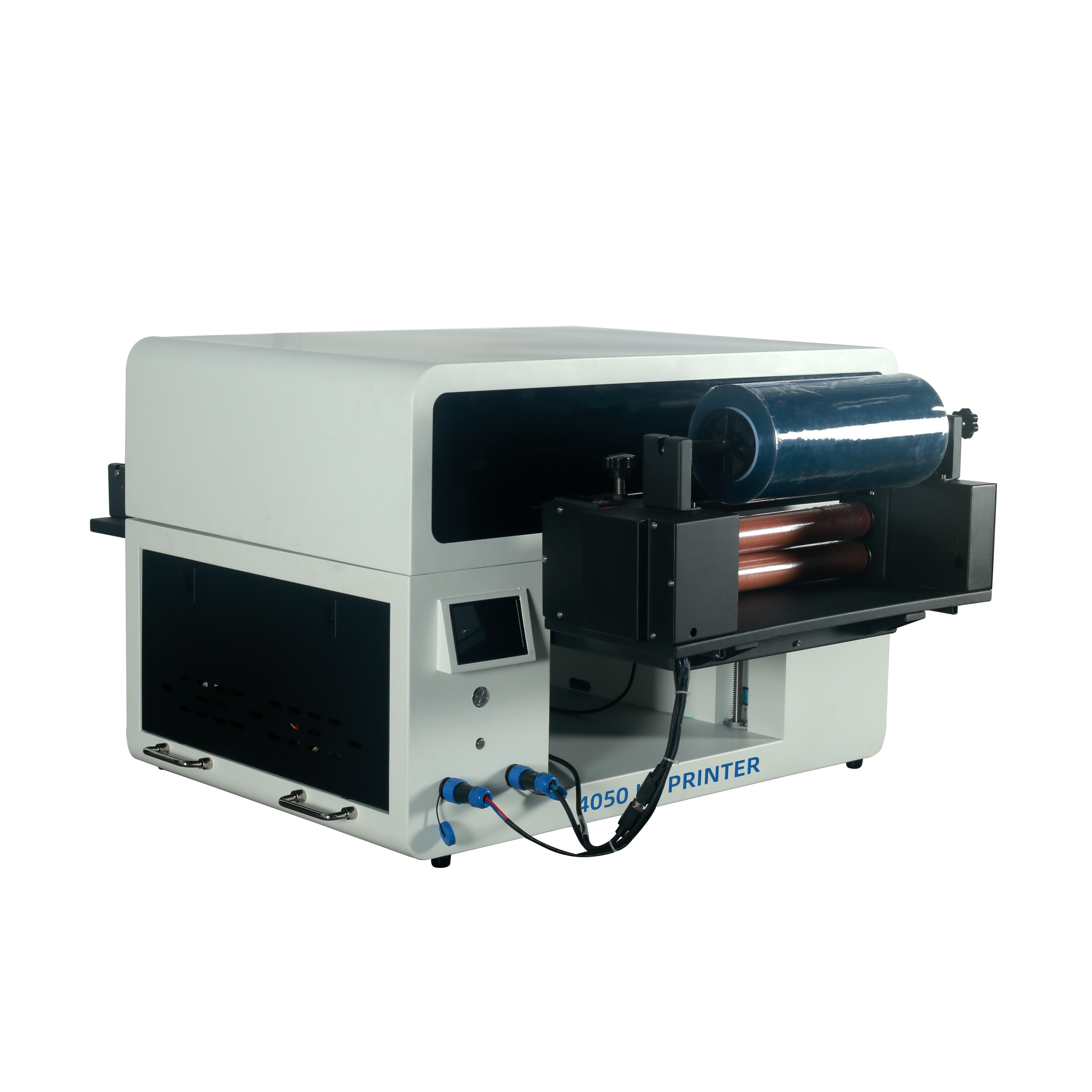

Front and Rear Roll-Fed Parts for Crystal Labels
Electric Cylindrical Gripper
|
| Item | Details |
|---|---|

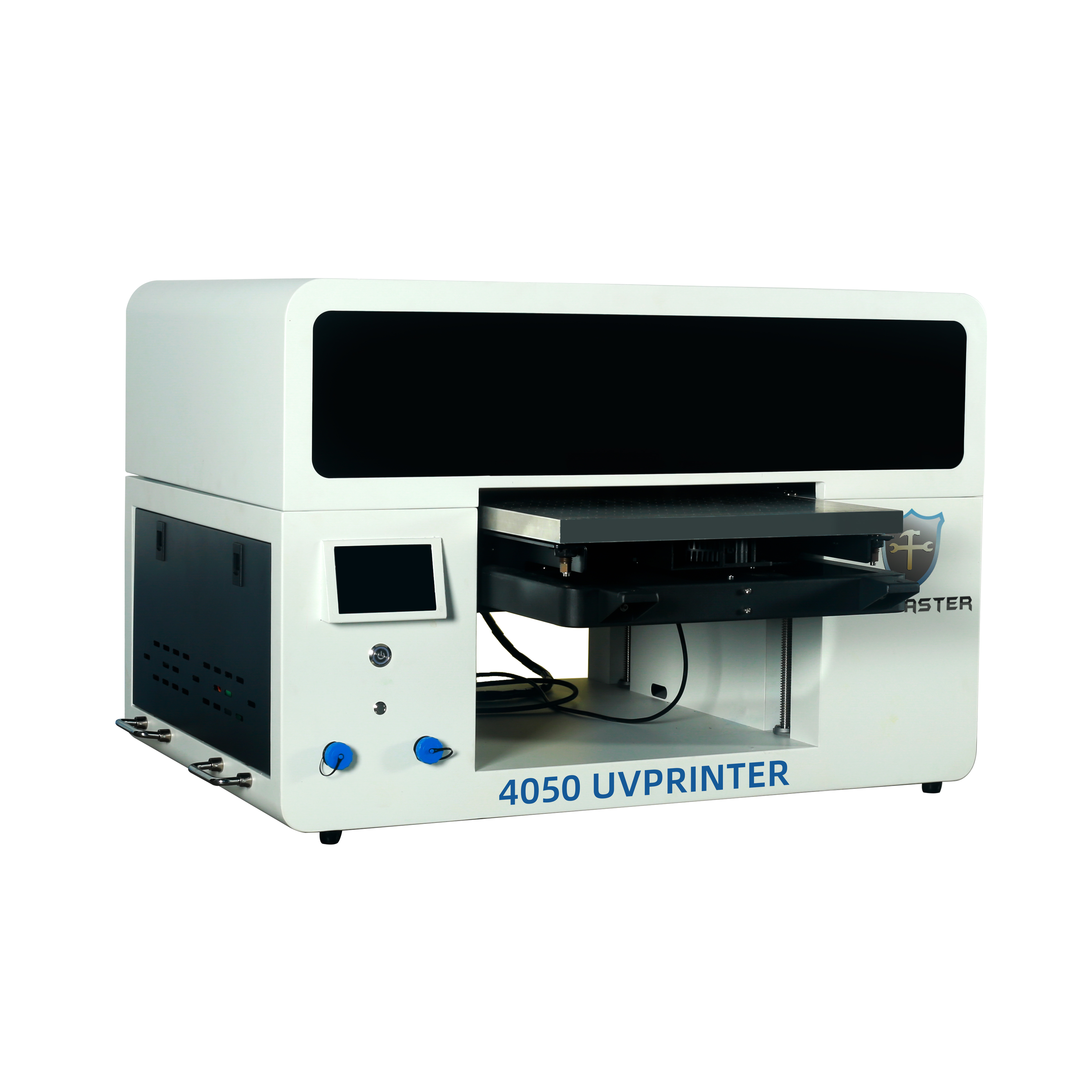

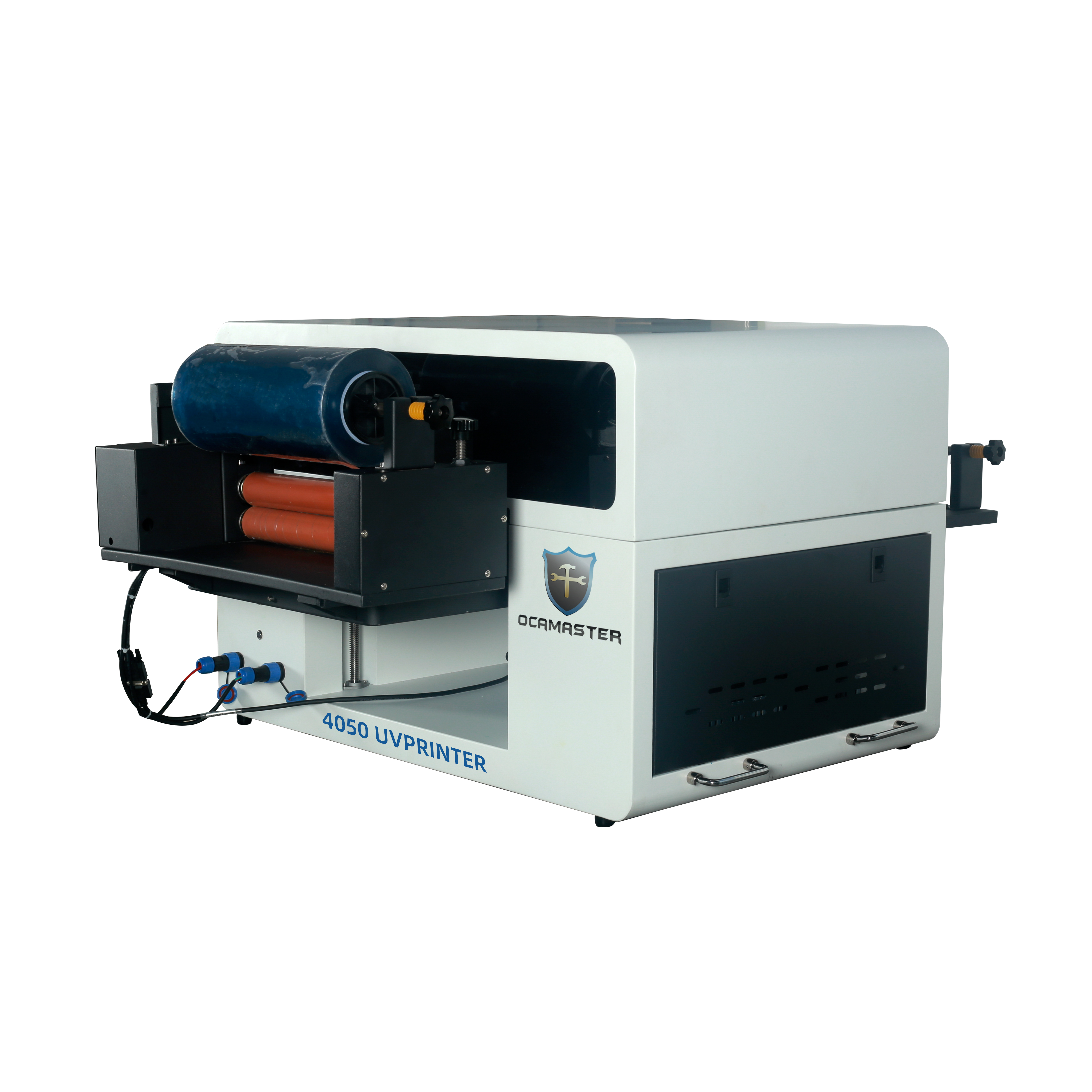

| Model | OM-4050 Dual-printhead flatbed UV printer |
| Print Size | Flatbed: 40cm × 50cm; Roll: 30cm width |
| Print Heads | 2 |
| Machine Size | 125 × 85 × 57cm (manual measurement) |
| Machine Weight | Approx. 100 kg |
| Print Platform | Aluminum vacuum suction platform |
| Special Process | Cylindrical printing optional |
| Printhead Maintenance | Auto flash spray, auto moisturizing, one-key cleaning |
| Ink Colors | Cyan, Magenta, Yellow, Black + White + Varnish |
| Image Formats | TIFF, BMP, JPEG, PDF and other common image formats |
| Ink Supply System | Pressure ink supply system with white ink auto-stirring |
| Environment | Optimal temperature 10℃–35℃, 30%–70% relative humidity, non-condensing |
| Operating System | Windows (macOS not supported) |
| Total Power | 350W |
| Power Supply | AC110V / AC220V, 50Hz |
| Servo Motor | High-precision servo motor |
| Height Adjustment | Automatic height measurement / electric lifting |
| Height Range | 0–130mm |
| Printable Materials | Glass, acrylic, ceramic tiles, metal sheets, cardboard, fabric, wood, leather, PVC, PP, PE, PTFE and other flat materials, plus cylindrical items such as bottles and tumblers |
| Shipping Accessories | 1 printer, 1 set of ink, printing software, nesting software, imaging software, power cable, data cable, 2 spare ink bags, 1 pack of spare screws, 1 bottle of moisturizing liquid, 1 pack of dust-free cloths |
