OM-5060UVPrint+Dual Printhead
Electric Cylindrical Gripper
|

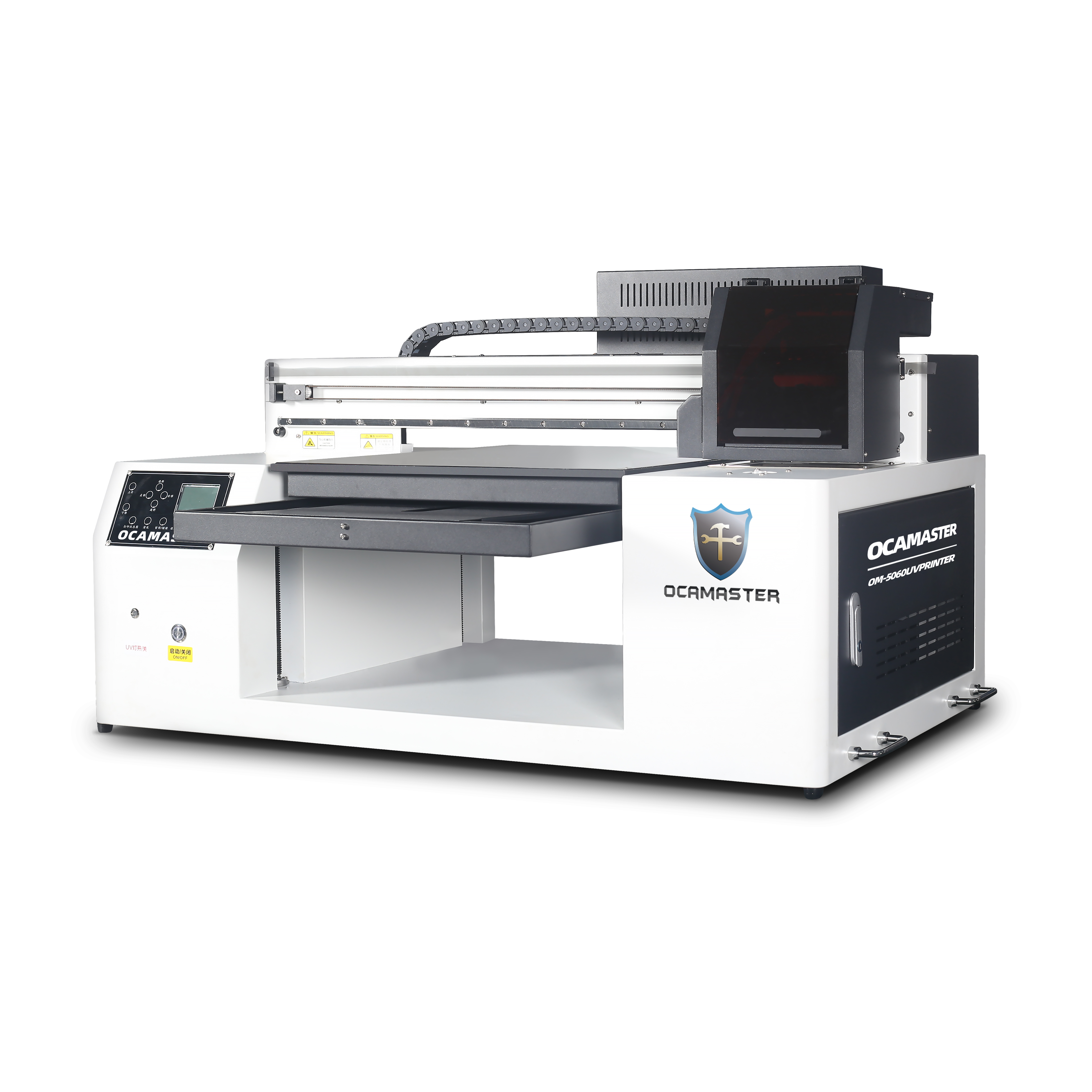

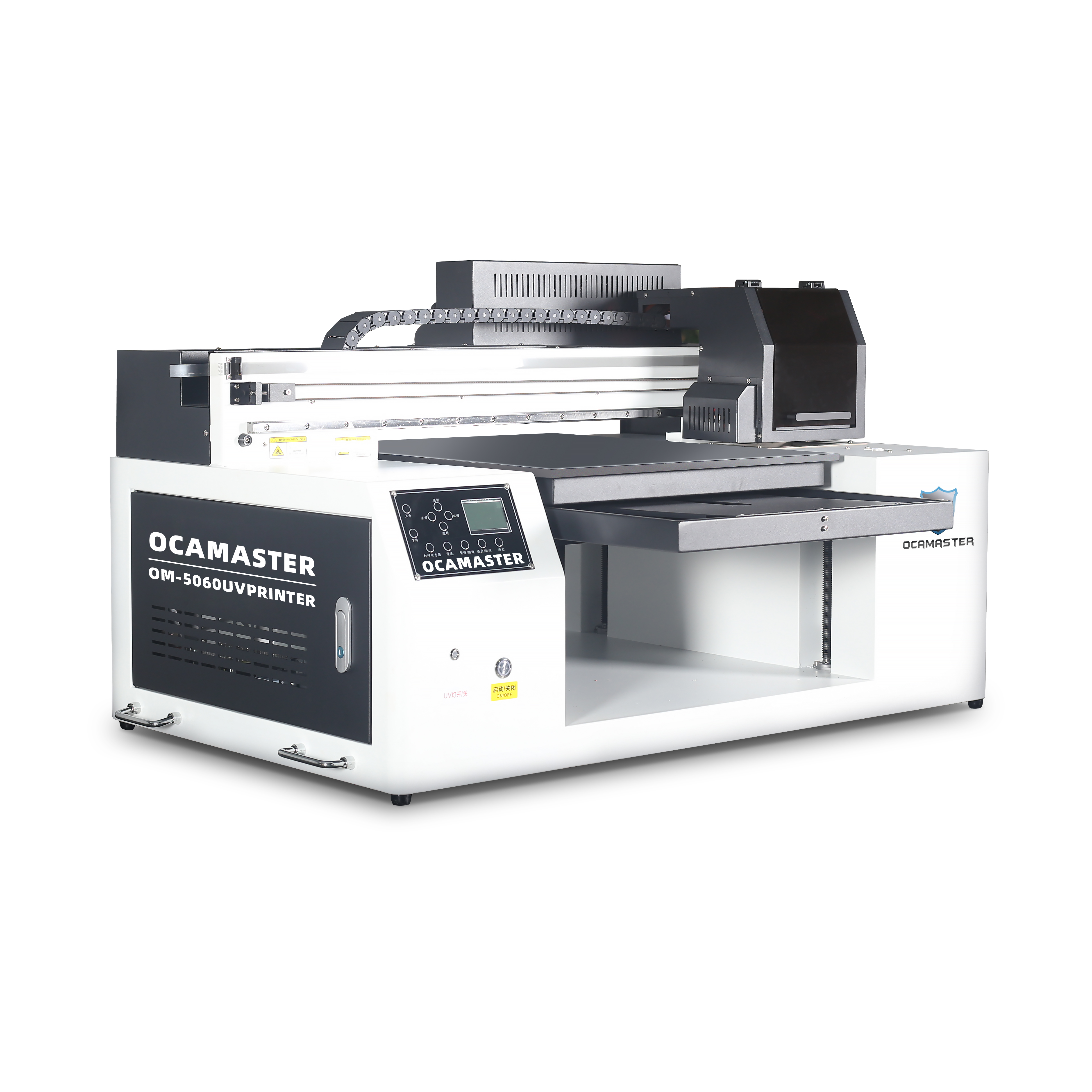

OCAMASTER OM-5060 DUAL-HEAD UV FLATBED PRINTER
Product Specifications
| Item | Details |
|---|---|
| Model | OM-5060 Dual-Head UV Flatbed Printer |
| Print Size | 50cm × 60cm |
| Print Heads | 2 |
| Machine Size | 103 × 67 × 67cm (manual measurement, slight deviation) |
| Package Size | 113 × 77 × 77cm (manual measurement, slight deviation) |
| Machine Weight | Approx. 85 kg (varies with accessories and ink volume) |
| Print Platform | Standard tempered glass platform (vacuum suction platform optional) |
| Special Process | Gloss varnish & cylindrical printing optional |
| Printhead Maintenance | Auto flash spray, auto moisturizing, one-key cleaning |
| Ink Colors | Cyan, Magenta, Yellow, Black + White + Light Magenta + Light Cyan + Varnish (8 colors) |
| Image Formats | TIFF, BMP, JPEG, PDF and other common image formats |
| Ink Supply System | Pressure ink supply system with white ink auto-stirring |
| Environment | Optimal temperature 10℃-35℃, 30%-70% relative humidity, non-condensing |
| Operating System | Windows (macOS not supported) |
| Total Power | 350W |
| Resolution | 1440 × 2160 × 2880 dpi |
| Power Supply | AC110V / AC220V, 50Hz |
| Servo Motor | High-precision servo motor |
| Height Adjustment | Automatic height measurement / electric lifting |
| Height Range | 0-200mm |
| Printable Materials | Glass, acrylic, ceramic tiles, metal sheets, cardboard, fabric, wood, leather, PVC, PP, PE, PTFE and other flat materials, plus cylindrical items such as bottles and tumblers |
| Shipping Accessories | 1 printer, 1 set of ink, printing software, nesting software, imaging software, power cable, data cable, 2 spare ink bags, 1 pack of spare screws, 1 bottle of moisturizing liquid, 1 pack of dust-free cloths |
